| 液晶型號 | 行列點陣數(shù) | 模塊體積(mm) | 視域尺寸(mm) | 字符尺寸(mm) | 供電電壓 | 控制器 | PDF資料 | 液晶圖片 | |
| 3V | 5V | ||||||||
| GDEP014TT1-1.43inch-Epaper | 198*296 dot | 18.3(H)*42.7(V)*0.607(D) | 14.464(H)*33.448(V) | 0.113(H)*0.113(V) | ✔ | PDF文檔 |  |
||

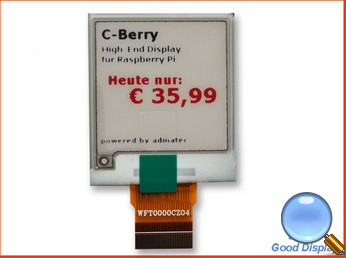

| GDEW0154Z04-1.54inch-E-paper-Three colors | 200(H)*200(V) dot | 31.8(H)*37.3(V)*1.05(D) | 27.6(H)*27.6(V) | 0.138*0.138 | ✔ | PDF文檔 |  |
||
| IL021AF1W1-2.1 inch-E paper | 172*72 dot | 65.5*40.0*12.2mm | 48.7*20.9mm | ✔ | PDF文檔 |  |
|||
| ILE029A1-E-paper 2.9inch | 128*296 dot | 36.7*79.0*1.05 | 29.05*66.89 | 0.227*0.226 | PDF文檔 |  |
|||
| GDEW029Z04 | 296*128 dot | 79.0*36.7*1.18 | 66.90*29.06 | 0.227*0.226 | PDF文檔 |  |
|||
| IL0213CF3W5-E paper 2.13inch | 250*122 dot | 29.2*59.2*1.05 | 23.80*48.55 | 0.195*0.194 | PDF文檔 |  |
|||
| GDEW0213Z04(Three colors)-E paper 2.13inch | 212*104 dot | 59.2*29.2*0.98 | 48.55*23.80 | 0.229*0.228 | PDF文檔 |  |
|||
| ILE035A3 3.5inch E paper | 800*480 dot | 52.5*89.11*0.98 | 45.7*76.16 | 0.952*0.952 | PDF文檔 |  |
|||
| GDE043A2 4.3inch E paaer | 800*600 dot | 126.5*74.6*1.17 | 88.00*66.00 | 0.11*0.11 | PDF文檔 |  |
|||
